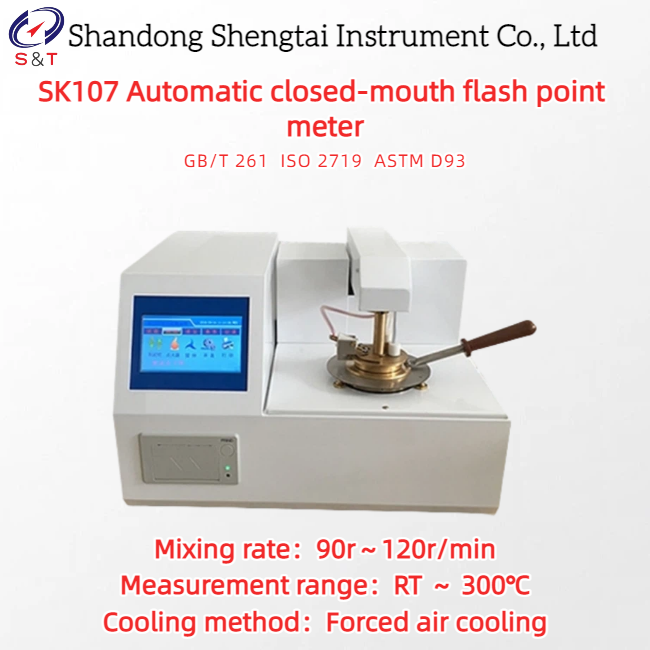

SK107 Automatic closed-mouth flash point meter
SK107 is a fully automatic closed-mouth flash point tester, which is developed by centralized surgery. The instrument adopts microcomputer technology and large-screen LCD display. The instrument is heated up, automatically raised and lowered, automatically ventilated, and automatically ignited according to the standard method, without air source, automatic display, automatic locking of flash point value, and automatic printing of results. After the test, it can automatically cool down and realize the full automation of the working process. It has the advantages of accurate measurement, good repeatability, stable performance and simple operation. It is widely used in power, petroleum, chemical, commodity inspection, scientific research and other departments. Comply with ISO-2719 and GB261-83 standards.
Standard: GB/T 261 ISO 2719 ASTM D93
Technical parameter
| Display mode |
5-inch touch screen, large LCD module display |
| Measurement range |
RT ～ 300℃ |
| Accuracy |
≥104℃, ±2℃;≤104℃, ±1℃ |
| Heating rate |
in accordance with GB/T261 standard |
| Mode A heating rate |
5℃～6℃/min |
| Mixing rate |
90r～120r/min |
| Cooling method |
Forced air cooling |
| Error |
Flash point ≤104℃, error ± 2℃;
Flash point ≥104℃, error ± 4℃
|
| Power supply |
AC220V±22V 50Hz±2.5Hz |
| Power |
100VA |
| Ambient temp |
10℃～35℃ |
| Relative humidity |
≤85％ |
| Instrument size |
410*2600*300mm |
| Instrument weight |
15kg |
| Package size |
345*405*525mm |
| Package weight |
19kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior note.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
